About Kroki

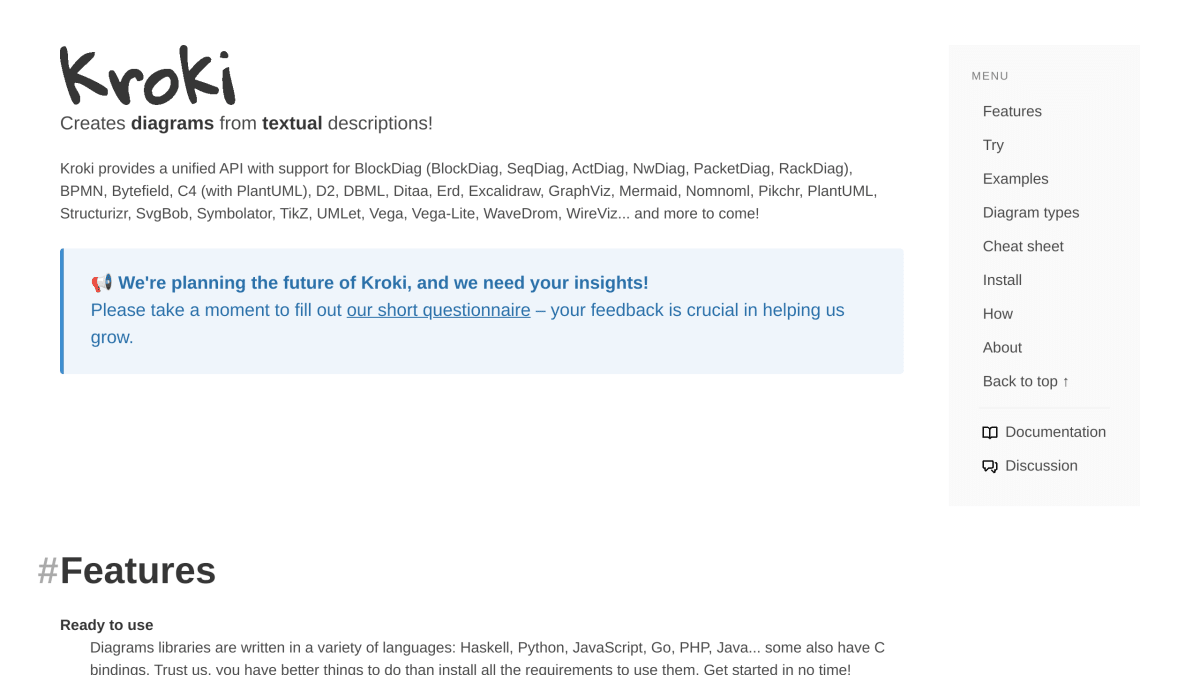

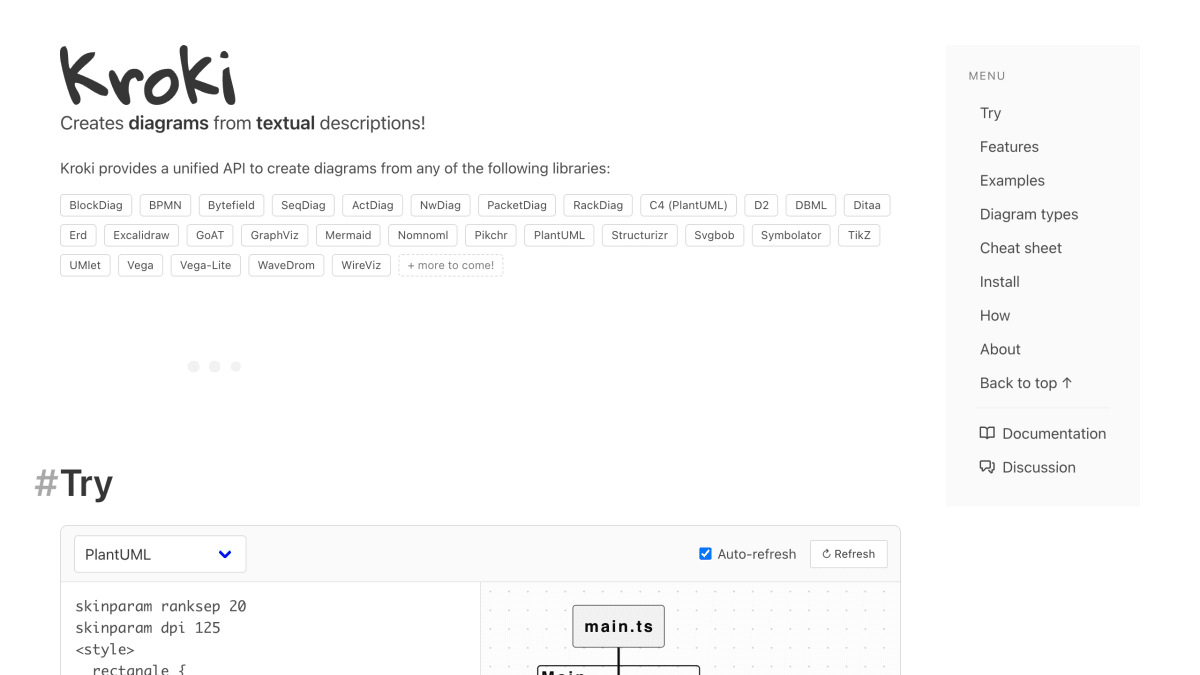

Kroki provides a unified HTTP API for generating diagrams from textual descriptions, aggregating over 25 diagram libraries including BlockDiag, BPMN, Bytefield, SeqDiag, PlantUML, D2, Mermaid, GraphViz, Excalidraw, Vega, Vega-Lite, TikZ, and WaveDrom under a single interface. Diagrams are created by encoding source text (via deflate + base64) into a GET request URL, or by submitting plain text or JSON through a POST request; the API returns output in formats such as SVG, PNG, PDF, or JPEG depending on the diagram type.

The tool is aimed at developers who want to generate diagrams programmatically without installing and maintaining the individual runtime dependencies for each diagramming library, which are written across languages including Haskell, Python, JavaScript, Go, PHP, and Java. Documentation includes code examples for encoding diagrams in Node.js, JavaScript, Java, Python, and Go, along with a generated cheat sheet listing every diagram type, its supported formats, and URL slug.

Kroki is open source under the MIT license, with code available on GitHub. It is offered as a free hosted service, run on infrastructure donated by Exoscale and built and maintained by Yuzu tech, and is also available as a self-managed instance for installation on user-controlled infrastructure, which the documentation notes requires Linux experience.

Key features

• Unified HTTP API to render diagrams from 25+ libraries including PlantUML, Mermaid, GraphViz, D2, and Excalidraw
• Supports GET requests with deflate+base64-encoded diagrams and POST requests with plain text or JSON body
• Outputs multiple formats such as PNG, SVG, PDF, and base64 depending on diagram type
• Available as a free hosted service or self-managed on your own infrastructure
• Open source under the MIT license with code available on GitHub
